ESP32-CAM Board
- Compact ESP32 development board with integrated camera interface
- Built-in 2.4 GHz Wi-Fi and Bluetooth connectivity
- Supports camera-based image capture and wireless transmission
- Includes microSD card interface for local image and data storage
- Ideal for IoT cameras, smart surveillance, robotics and computer vision projects
SKU: esp32-cam-module
ESP32-CAM Wi-Fi Camera Development Board
The ESP32-CAM is a compact development board that combines an ESP32 microcontroller with a camera interface, wireless connectivity and support for local storage. It provides an affordable platform for developing connected camera and image-processing applications.
The board features integrated 2.4 GHz Wi-Fi and Bluetooth, allowing captured images and camera data to be transmitted wirelessly to a computer, smartphone, web server or other network-connected device. It can also be programmed to operate as a standalone wireless camera or IoT device.
A microSD card interface is provided on common ESP32-CAM versions, allowing images, video frames, sensor data and other files to be stored locally. The board also exposes GPIO connections for interfacing with sensors, LEDs, relays and other peripherals.
The ESP32-CAM is well suited to smart surveillance, remote monitoring, home automation, robotics, access-control systems, image capture and other IoT applications requiring a compact wireless camera platform.
Technical Specifications
| Product Type | ESP32 Wi-Fi Camera Development Board |
|---|---|
| Microcontroller | ESP32 |
| Processor | 32-bit Xtensa LX6 Dual-Core |
| CPU Frequency | Up to 240 MHz |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth 4.2 / BLE |

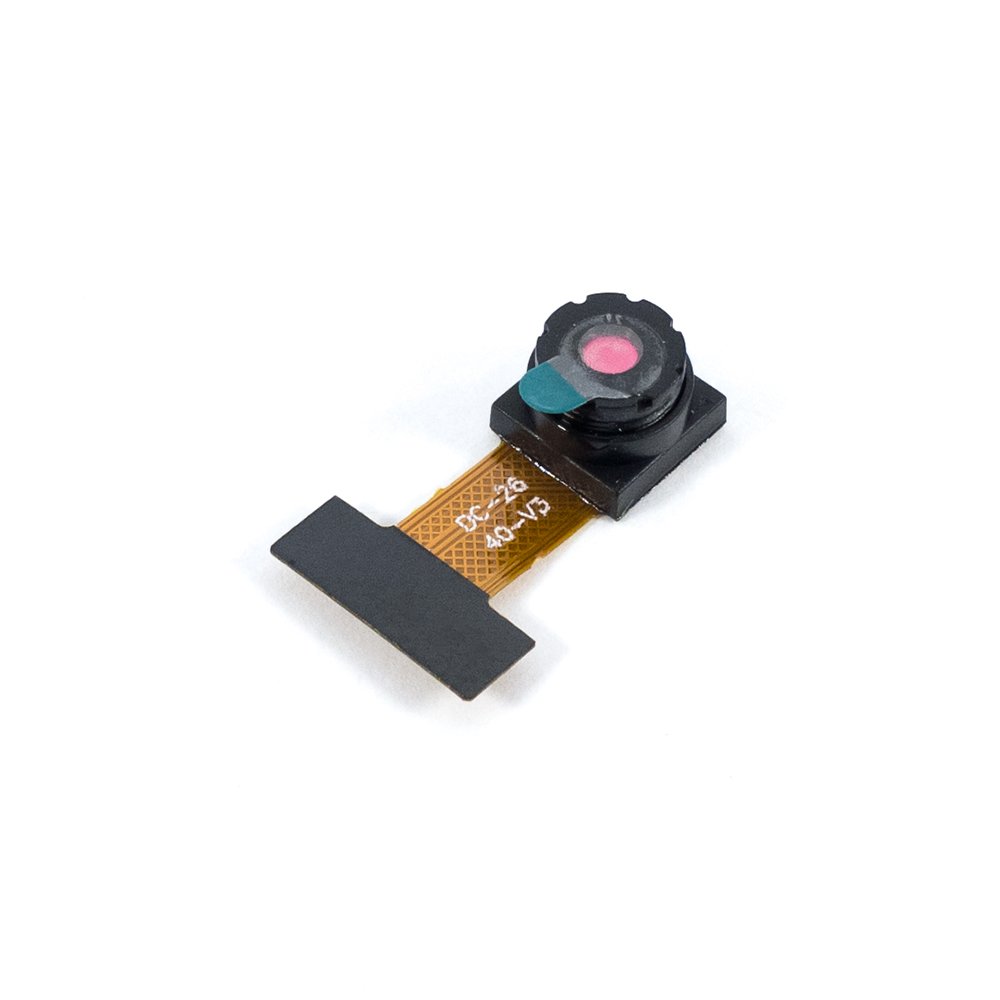

| Camera | OV2640-compatible camera interface on common ESP32-CAM versions |
| Camera Resolution | Up to 2 Megapixels with OV2640 |
| Flash Memory | Typically 4 MB |
| PSRAM | Typically 4 MB on common ESP32-CAM modules |
| Storage | MicroSD card interface |
| Logic Voltage | 3.3V |
| Programming Interface | UART; external USB-to-Serial adapter typically required |
| Applications | IoT cameras, surveillance, robotics, remote monitoring, image capture and smart-home systems |
